The GBU-57A/B, known as the Massive Ordnance Penetrator (MOP), is the most formidable non-nuclear bunker-busting bomb in the United States military arsenal. Designed to strike deeply buried and fortified targets, the MOP is capable of penetrating hundreds of feet of reinforced concrete and rock before detonation.
Conceived as a countermeasure against underground nuclear development facilities in nations such as Iran and North Korea, the MOP gives the United States a powerful, strategic option without crossing into nuclear escalation.
🔷 DEVELOPMENT BACKGROUND
Developed by Boeing under a U.S. Air Force contract. Initiated in the early 2000s under the Defense Threat Reduction Agency (DTRA). Officially entered service in 2011. It was created in response to intelligence on deep underground military installations (DUMBs), particularly those used for nuclear weapons programs and command centers.
📄 SPEC SHEET: GBU-57A/B MOP
Full Name: GBU-57A/B Massive Ordnance Penetrator
Nickname: MOP
Type: Deep-penetration bunker buster bomb
Manufacturer: Boeing
In Service Since: 2011
Used By: United States Air Force
Primary Delivery Aircraft: B-2 Spirit stealth bomber
✅ WEIGHT & STRUCTURE
Total Weight: 30,000 lbs (13,600 kg) Length: 20.5 feet (6.2 meters) Diameter: 31.5 inches (0.8 meters) Casing: Reinforced, high-density steel Penetrator Mass: Over 5,300 kg (70% of the bomb is solid metal)
✅ EXPLOSIVE FILL & POWER
Explosive Type: AFX-757 (high-blast explosive) Explosive Fill: ~5,300 lbs (2,400 kg) Yield: Equivalent to ~3 tons of TNT Penetration: 200 feet (61 meters) of 5,000 psi reinforced concrete Over 130 feet of rock or hardened underground bunkers Warhead Type: High Explosive Penetration Warhead (HEPW)
✅ GUIDANCE & ACCURACY
Guidance System: GPS-aided inertial navigation CEP (accuracy): ~5 meters Delivery Altitude: High-altitude precision release Deployment Aircraft: B-2 Stealth Bomber (primary), B-52 (tested)
✅ MISSION ROLE
Primary Use: Destroying WMD bunkers Penetrating nuclear facilities Taking out leadership centers and communications bunkers Target Examples: Iran’s Fordow nuclear facility North Korean underground missile silos Deep mountainside bases
🔷 DESIGN & STRUCTURE
Weight: 30,000 lbs (13,600 kg) Length: 20.5 feet (6.2 meters) Diameter: 31.5 inches (0.8 meters) Explosive Fill: ~5,300 lbs of AFX-757 high explosive Warhead Type: High Explosive Penetrating Warhead (HEPW) Casing: Dense, high-strength steel shell optimized for kinetic penetration Guidance: GPS-aided inertial navigation system (INS) Accuracy: ~5 meters CEP (Circular Error Probable)
The bomb consists largely of dense metal with a hardened casing and a smaller high-explosive charge. Over 70% of its mass is solid steel, giving it incredible momentum for deep kinetic penetration.

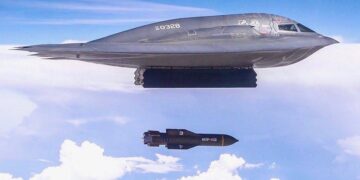

🔷 DELIVERY METHOD
Primary Aircraft: B-2A Spirit Stealth Bomber (main operational platform) Compatible with internal bomb bays Alternate Platform (tested): B-52 Stratofortress, but not operationally used for MOP deployment
Due to its size and weight, the MOP can only be carried internally by strategic bombers. The B-2’s stealth capabilities are essential for reaching high-value targets in heavily defended airspace.
🔷 TRANSPORT & LOADING
Transported via specialized Air Force ground logistics trailers with hydraulic lift systems. Loaded internally into the B-2’s weapons bay using air base cranes or precision loading rigs. Because of its weight and sensitive GPS systems, the MOP is carefully calibrated pre-flight for target programming.
🔷 STRIKE MECHANISM
High-Altitude Release: The B-2 flies at a high altitude to gain maximum kinetic force. Free-Fall Acceleration: The MOP is not rocket-propelled. It relies on gravity and its mass to reach hypersonic velocity during descent. Penetration Phase: The hardened steel casing allows it to penetrate up to 200 feet (60+ meters) of 5,000 psi reinforced concrete or 130 feet of rock. Delayed Detonation: The fuze is programmed with penetration delay timing, ensuring detonation occurs only after the bomb reaches the desired depth inside the facility. Target Effect: Massive overpressure and blast from inside the ground cause structural collapse and eliminate subterranean personnel, equipment, and nuclear materials.
🔷 STRATEGIC ROLE & TARGETS
Mission Profile: Destruction of nuclear enrichment and command centers Neutralization of WMD storage or production bunkers Crippling leadership hideouts in hardened shelters Likely Targets: Iran’s Fordow Fuel Enrichment Plant (deep mountain facility) North Korea’s Yongbyon and Punggye-ri nuclear test sites Heavily protected underground missile silos or control hubs Psychological and Tactical Advantage: Provides a nuclear-like strike capability without the political and humanitarian consequences of atomic weapons.
🔷 OPERATIONAL LIMITATIONS
Weather Dependency: High-altitude release accuracy can be affected by atmospheric conditions. Aircraft Vulnerability: Only stealth bombers like the B-2 can approach high-threat zones without interception. Cost and Scarcity: Very limited in number. Each unit is costly and typically reserved for top-priority war plans.
The GBU-57A/B MOP is a strategic precision weapon that gives the United States the power to strike deeply buried nuclear facilities, hardened bunkers, and strategic underground targets — without nuclear escalation.
With unmatched penetration capabilities, accurate GPS targeting, and stealth-bomber delivery, the MOP remains a critical asset in U.S. war planning against hardened threats in nations like Iran and North Korea.
It is not a weapon of wide destruction — it is a scalpel for subterranean warfare, designed to break the unbreakable.
