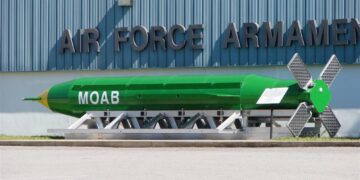

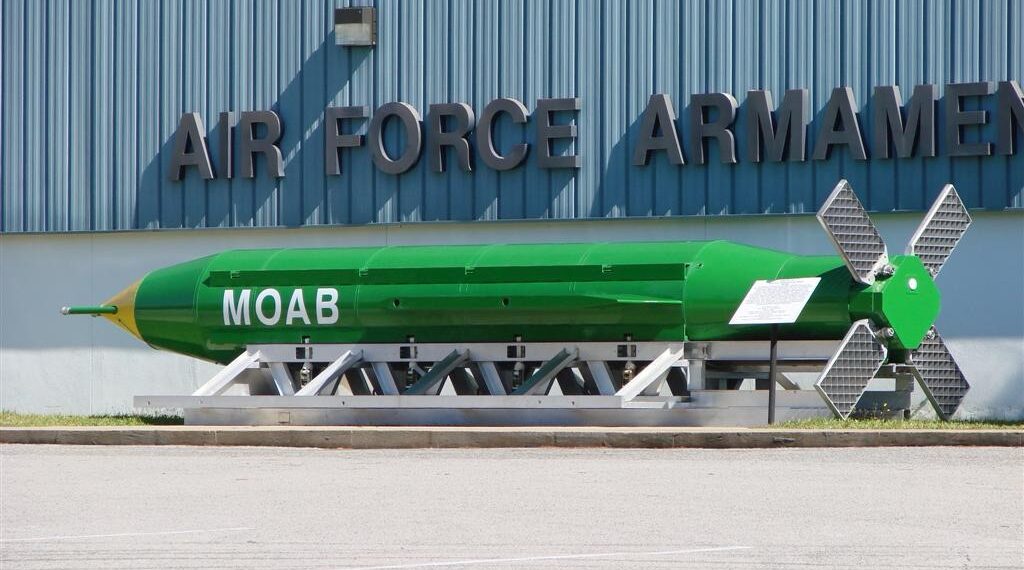

The GBU-43/B Massive Ordnance Air Blast bomb, commonly known as the MOAB or “Mother of All Bombs,” is the most powerful non-nuclear bomb ever developed and deployed by the United States military. It was officially introduced into service in 2003 and is currently maintained by the U.S. Air Force as a strategic and tactical deep-strike weapon.
The MOAB is designed for maximum blast effect and area denial, particularly in open terrain or fortified enemy hideouts, such as tunnel complexes. It is GPS-guided, highly accurate for its size, and is deployed from high altitudes by specialized aircraft such as the Lockheed C-130 Hercules using a parachute deployment system.
🔹 Overview
The MOAB is officially designated GBU-43/B. Nicknamed the “Mother of All Bombs”, reflecting its massive explosive power. It was developed by the U.S. Air Force Research Laboratory and produced by Dynetics. Enters service in 2003, replacing older large-yield conventional bombs like the BLU-82 Daisy Cutter. First used operationally on April 13, 2017, against ISIS tunnel networks in Afghanistan.
🔹 Purpose and Role
Area Denial: Designed to clear large surface areas of enemy personnel or fortified positions. Anti-Structure: Destroys bunkers, buildings, and lightly buried facilities using overpressure. Psychological Warfare: Creates a shock-and-awe effect due to its enormous blast, sound, and media impact. Non-Nuclear Solution: Offers strategic-level destructive power without violating nuclear weapons treaties.
🔹 Key Specifications
Weight: The bomb weighs approximately 21,600 pounds (9,800 kg).
Explosive Fill: Contains 18,700 pounds (8,480 kg) of H6 high explosive, a combination of RDX, TNT, and aluminum.
Explosive Yield: Equivalent to 11 tons of TNT, making it the most powerful U.S. conventional bomb. Length: Approximately 30 feet (9.17 meters) long.
Diameter: Around 40.5 inches (1.03 meters). Guidance System: Uses GPS (Global Positioning System) combined with inertial navigation for precision targeting.
Circular Error Probable (CEP): Estimated at around 10 meters, which is very accurate for such a large weapon.
Warhead Type: High explosive (non-nuclear) designed for maximum air-blast effect.
Blast Radius: Estimated effective radius of up to 1 mile in open terrain, depending on topography and weather.
🔹 Deployment Method
Platform: Dropped by the Lockheed MC-130 Combat Talon, a variant of the C-130 Hercules designed for special operations. Release Technique: The MOAB is deployed from the aircraft using a drogue parachute to pull it out of the cargo bay and stabilize its fall. Glide and Detonation: Once released, the bomb glides toward the target using aerodynamic fins, and detonates just above ground level for maximum air-blast effect.
🔹 Strategic Use and Impact
First Combat Use: April 2017 in Nangarhar Province, Afghanistan, targeting a tunnel complex used by ISIS militants. U.S. Central Command confirmed over 90 enemy combatants killed, with no civilian casualties reported. Shock and Awe Doctrine: The MOAB embodies the U.S. doctrine of overwhelming force intended to stun, confuse, or demoralize opponents through sudden, massive attacks. Not a Bunker Buster: Unlike the GBU-57A/B Massive Ordnance Penetrator (MOP), the MOAB is not meant to burrow into hardened underground targets but rather obliterate surface and shallow underground structures using overpressure and shockwaves. Media and Morale Weapon: Its size, sound, and media coverage amplify its psychological effectiveness far beyond the actual area of damage.
🔹 Comparison to Other Weapons
GBU-43/B MOAB: 21,600 lbs – 11 tons TNT – Area blast GBU-57A/B MOP: 30,000 lbs – Designed for deep-penetration bunker busting BLU-82 Daisy Cutter: 15,000 lbs – Predecessor of the MOAB, Vietnam-era technology Nuclear Bombs (e.g., Little Boy): 15,000+ tons TNT – Strategic nuclear use
The GBU-43/B MOAB stands as a symbol of unmatched non-nuclear firepower and precision devastation. With its blend of GPS guidance, massive explosive yield, and psychological impact, the MOAB serves as a unique tool in the U.S. military’s arsenal — used sparingly, but effectively, when overwhelming force is necessary to eliminate threats and send a message.
It is a rare weapon, reserved for extreme operational scenarios where both effectiveness and symbolism are needed to tip the strategic balance.
